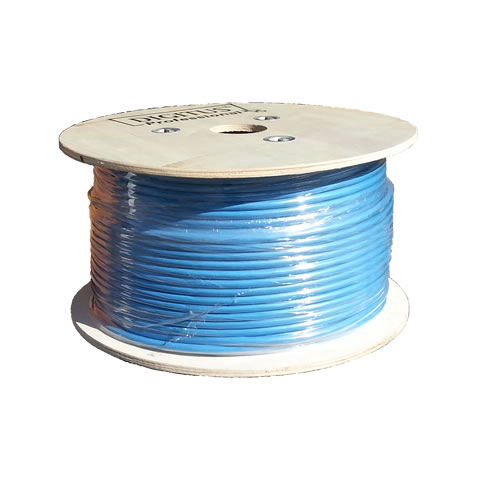

Best Cat7 performance and link quality for your network.

• Basic conductor: Solid AWG 23/1; bare annealed copper 0.57 mm nom
• Insulation: SFS-PO
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Individual pair shielding: aluminum foil, providing 100 % coverage
• Overall shielding: tin-coated copper wire braid, 35% nom. coverage
• Outer jacket: Low-smoke, zero-halogen, flame retardant, non corrosive compound for indoor use
• Outer jacket, thickness: 0.6mm nom.
• Color: Blue (RAL 5010)
• Overall diameter: 7.5mm nom.
• Bending radius: dynamic 8 x D mm min, static 4 x D mm min
• Storage temperature: -20°C - +75°C
• Temperature range for installations: 0°C - +50°C
• Temperature range in operation: -20°C - +60°C
• Flame tests: IEC 60332-1 (fire), IEC 60754 (gas), IEC 61034 (smoke)
• Tensile loading: 150N max.
• Caloric value: 650KJ/m
• Total weight: 68kg/km nom.
• Mean impedance: 100±5Ohm at 1MHz - 600MHz
• Vp: 75%-77% nom.
• Capacitance: 40pF/m nom. at 1KHz
• Capacitance unbalance to ground: 1.6 pF/m max. at 1KHz
• Insulation resistance: 0.5GOhm*Km min.
• DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)
• DC loop resistance: 147Ohm/Km max. (2% max. resistance unbalance)
• Voltage resistance: 72Vdc max.
• Coupling attenuation: 85dB min. at 30MHz - 100MHz, 82-20Log(f/100)dB min. at 100MHz - 1000MHz
• PS-ANEXT loss: 92.5-15Log(f)dB min. at 1MHz - 600MHz (67dB max.)
• PS-AACRF: 78.2-20Log(f)dB min. at 1MHz - 600MHz (67dB max.)
• Phase delay: 534+36/f½ nS/155m(509ft) max. at f=1MHz - 1000MHz
• Delay skew: 25nS/100m max.
• Germany GHMT AG Lab Certified Cat7 Cable
